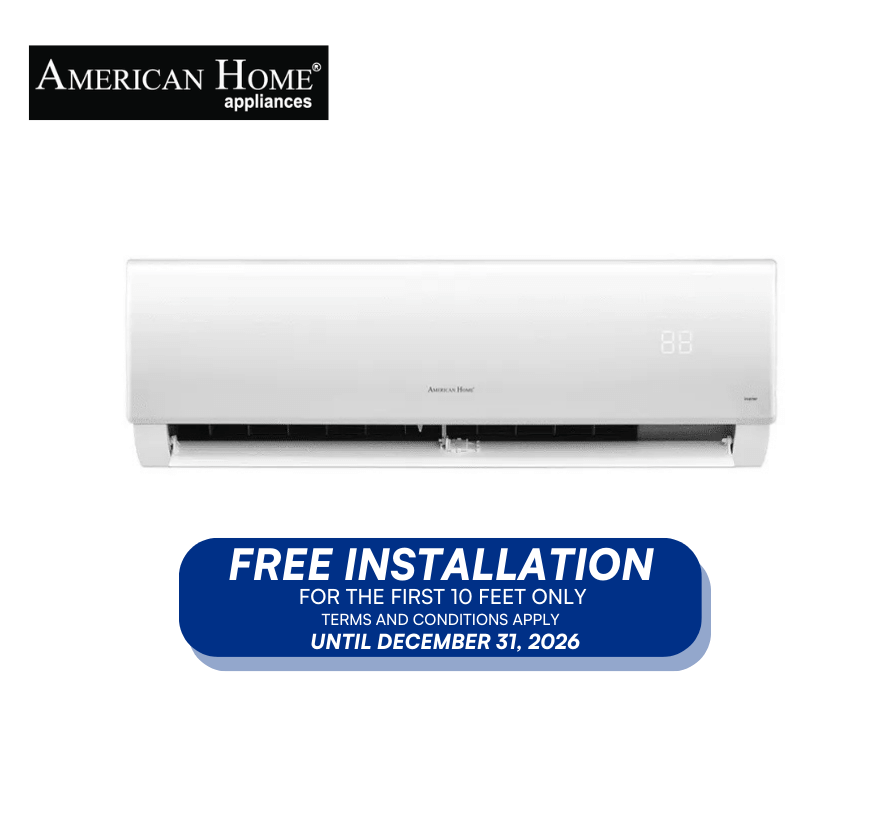

Name: American Home AHACMINV1523EHW
Brand: Western Appliances
SKU: 59227
Price: 24299 PHP
Availability: InStock

Inverter
Remote Control
Sleep Mode
Power Cooling
Auto Restart
Timer Operation
R32 Refrigerant

Aircon Installation Reminders

Customer is advised to undergo a free site survey for actual installation cost and aircon recommendation.
Delivery and installation will be scheduled separately.
Installation will be scheduled 2-3 working days after delivery.
For split type aircon installation schedule, please fill out the Aircon Survey & Installation Form or coordinate with our service team at 0919-073-7281 / 0919-073-7282.

Aircon Type

Split Type

Horsepower

1.5 HP

CSPF Rating

4.50

Star Rating

⭐⭐⭐⭐⭐

Cooling Capacity

12660 kJ/hr

Power Supply

1 Ph / 230~230 V / 60 Hz

Power Input

1150 W

Rated Running Current

7.5 A

EER

11.0 kJ/hr

Maximum Input Consumption

1700 W

Applicable Area

16 - 23 m²

IDU - Sound Pressure Level (H/L)

40.5/34/26.5 dBA

ODU - Sound Pressure Level (H/L)

53.5 dBA

Pipe Connection (Liquid)

6.35 mm / 1/4 in

Pipe Connection (Gas)

9.52 mm / 3/8 in

Maximum Piping Length

25 m

Maximum Piping Elevation

10 m

IDU - Gross Weight

9.8 kg

IDU - Net Weight

7.7 kg

ODU - Gross Weight

21.8 kg

ODU - Net Weight

19.9 kg

IDU - Gross Dimension (WxHxD)

870 x 360 x270 mm

IDU - Net Dimension (WxHxD)

805 x 285 x 194 mm

ODU - Gross Dimension (WxHxD)

835 x 540 x 300 mm

ODU - Net Dimension (WxHxD)

780 x 495 x 270 mm

Warranty

1 Year on Parts and Labor | 3 Years on PCB | 10 Years on Compressor

American Home Estimated Installation Rates
	1 HP	1.5 HP	2 HP	2.5 HP
1st 10 Feet	₱7,500	₱7,500	₱8,500	₱8,500
Additional per Foot	₱500	₱500	₱550	₱600

Electrical works like power supply and provision of feeder line are not included in the rates specified above.
Additional costs may apply for dismantling of old unit, special bracket and circuit breaker.

We highly recommend scheduling a free site survey before purchasing your split type aircon to determine the most appropriate aircon unit for your needs and actual installation costs. Product warranty may be void once the customer chooses to purchase and install a unit that does not meet the required horsepower for the area and/or has the aircon units installed by an unaccredited brand installer.

Aircon Survey & Installation Request

Let us help you find the right aircon and get an installation quotation from an accredited installer. (Service is available for Metro Manila, selected areas in Cavite, Pampanga, Batangas and Rizal)

"*" indicates required fields

Reviews

There are no reviews yet.
